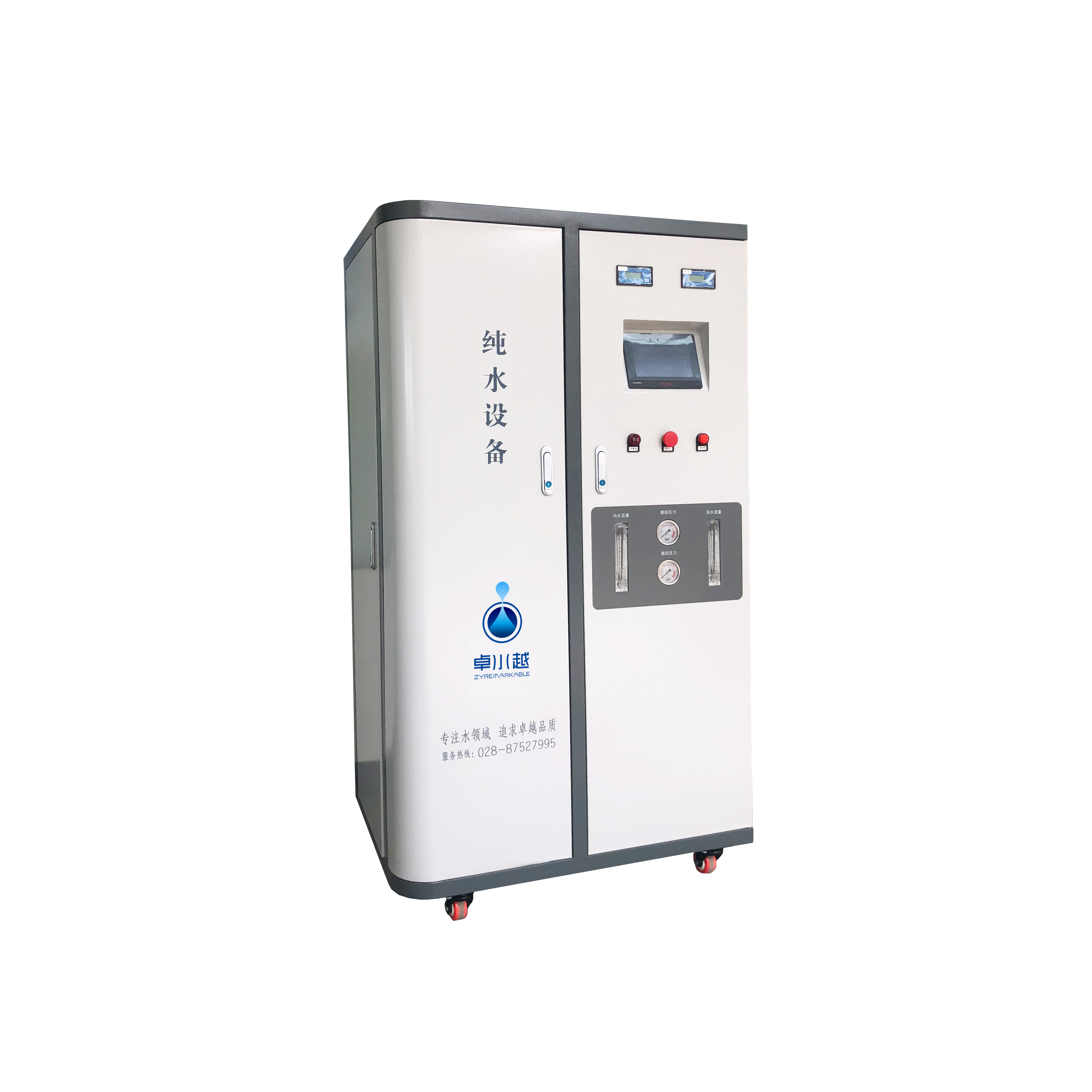

ZYNJQX Endoscopy Center Cleaning Purified Water System
Core Features
1. Working power supply: 220 V ±10%, 50 Hz, power: 0.8–1.0 kW.
2. Feed water source: municipal tap water with TDS < 200 ppm, water pressure 2.0–4.0 kg/cm², water temperature 5–40°C.
3. ★ Main process: pretreatment system + reverse osmosis system + ultraviolet sterilization + one-touch disinfection system + purified water storage system + circulating water supply system.
4. The product water quality complies with: the Health Industry Standard of the People's Republic of China WS507-2016, Technical Specifications for Cleaning and Disinfection of Flexible Endoscopes. Microorganisms ≤ 10 CFU/100 mL, purified water conductivity ≤ 15 µS/cm at 25°C.
5. The pretreatment system adopts a reinforced purification device with backwash self-cleaning function, requiring no frequent replacement. It can effectively remove silt, impurities, residual chlorine, pigments, odors, and organic matter from water.
6. ★ The equipment adopts an integrated sheet metal powder-coated enclosed cabinet with a built-in sterile water tank to save space. Equipment dimensions: 700 × 520 × 1470 mm. The system has a compact structural layout and a small footprint, effectively saving space. It adopts a modular water-electricity separation structure, ensuring safe use and easy maintenance. The piping follows the 3D principle with no dead-leg design. The tubing is connected using sanitary-grade materials that have obtained hygienic approval for drinking water contact, and the corresponding certification documents for the tubing shall be provided.
7. The reverse osmosis membrane is an aromatic polyamide composite membrane. RO membrane pore size: 0.0001–0.001 μm, desalination rate ≥ 99%, ion removal rate ≥ 99%. The RO membrane housing is made of SUS304 stainless steel. The RO membrane features functions such as running flushing, timed flushing, and manual flushing. It has an automatic double flushing function at startup for 18 seconds and when the water tank is full. During operation, full circulation is achieved to prevent bacterial growth, and it is equipped with an automatic water quality over-limit discharge function.
