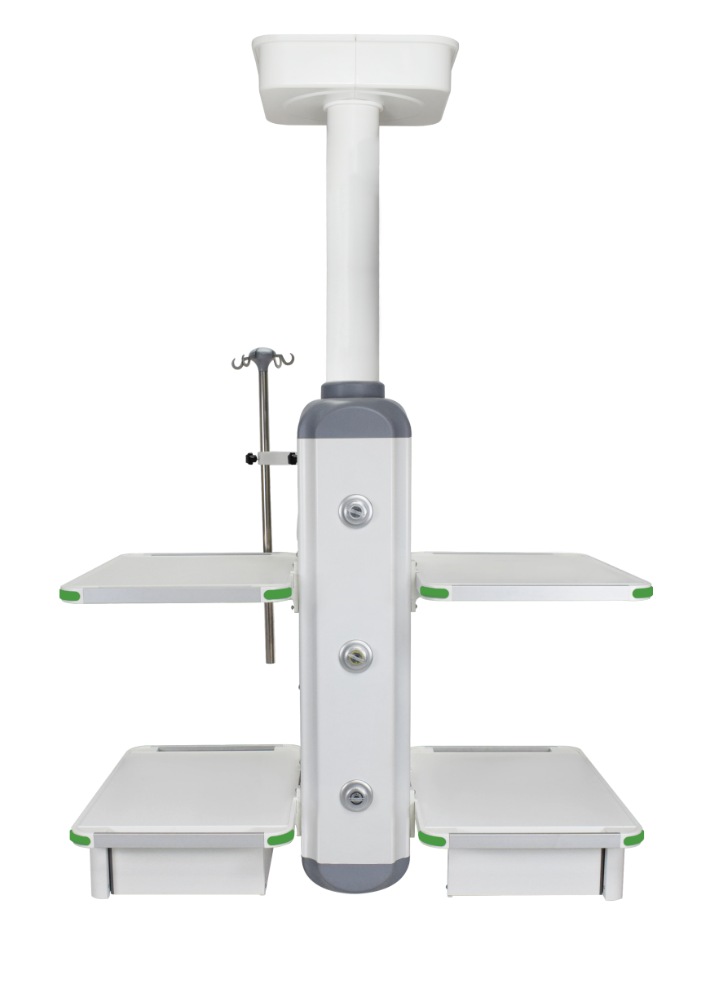

Double-Sided Medical Column

Core Features

1、工作电源： AC220V、50Hz； 2、终端箱体水平旋转角度：0～340°3、总载重量≥300kg；4、仪器平台：二层（高度可调）660mm*450mm，硅凝胶护角防撞设计；5、气体接口配置（国标二氧二吸二空或按院方要求配置）： a、接口颜色及形状不同，具有防接错功能；b、插拔次数2万次以上；6、电源插座：10个，220V、10A...

1. Working power supply: AC 220 V, 50 Hz.

2. Horizontal rotation angle of the terminal box: 0–340°.

3. Total load capacity: ≥300 kg.

4. Instrument platforms: 2 layers (height adjustable), 660 mm × 450 mm, with silicone gel corner protectors and anti-collision design.

5. Gas interface configuration (national standard: 2 oxygen, 2 vacuum, 2 medical air, or configured according to hospital requirements):

a. Different colors and shapes of connectors to prevent misconnection;

b. More than 20,000 insertion and withdrawal cycles.

6. Power sockets: 10 pcs, 220 V, 10 A; network interface: 1 pc.

7. Grounding terminals: 2 pcs.

8. Stainless steel adjustable IV pole: 1 pc.

9. Drawer: 1 pc.

10. Power and gas source interfaces are located on both sides of the tower body, fully realizing electrical and gas separation to ensure safe equipment operation.

11. Main body material: high-strength aluminum alloy profiles.

12. Surface treatment: electrostatic spraying.

13. Ceiling-mounted installation, stable and firm.
