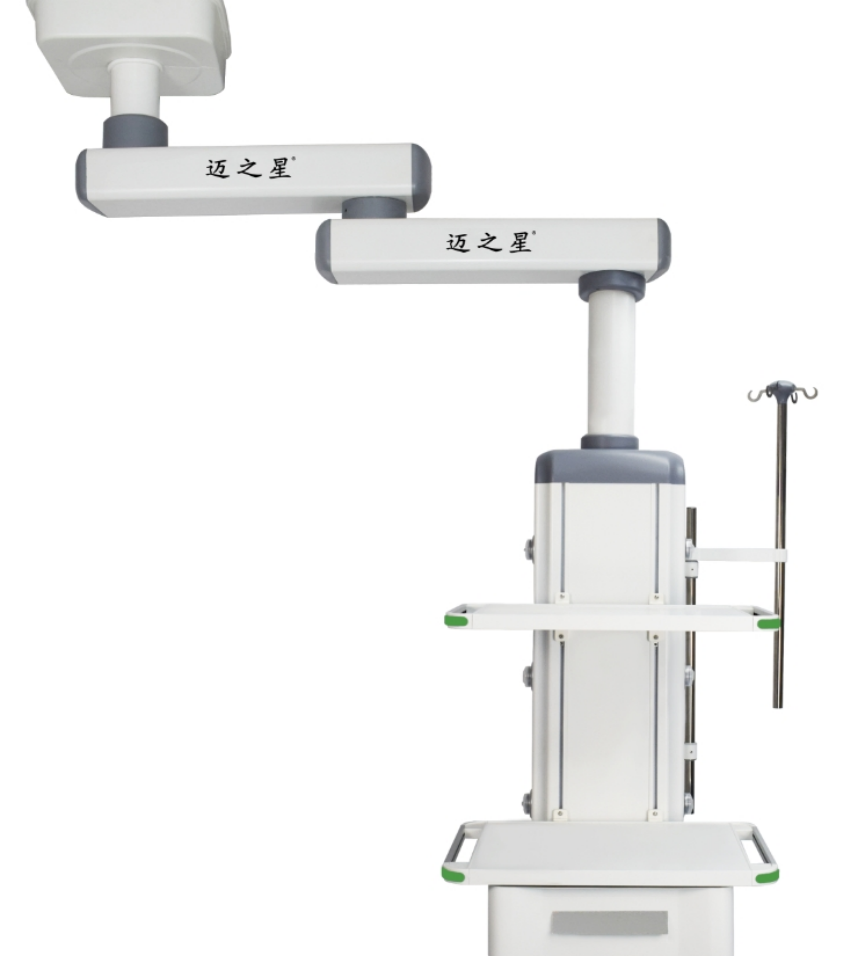

Double-Arm Rotating Surgical Tower

Double-Arm Rotating Surgical Tower

1. Working power supply: AC 220 V, 50 Hz.

2. Movement range (radius) of the double arms: 835 mm and 835 mm (configurable according to hospital requirements); arm thickness >10 mm.

3. Horizontal rotation angle: 0–340°. The arms and the terminal box can rotate horizontally separately or simultaneously.

4. Net load capacity: ≥180 kg.

5. Instrument platforms: 2 layers (height adjustable), 450 mm × 660 mm, with silicone gel corner protectors and anti-collision design.

6. Gas interface configuration (national standard: 2 oxygen, 2 vacuum, 2 medical air; configurable according to hospital requirements):

a. Different colors and shapes of connectors to prevent misconnection;

b. More than 20,000 insertion and withdrawal cycles;

c. Secondary sealing with three states (on, off, unplugged), and can be serviced while gas is supplied.

7. Power sockets: 10 pcs, 220 V, 10 A; network interface: 1 pc; grounding terminals: 2 pcs.

8. Drawer: 1 pc; stainless steel adjustable IV pole: 1 pc.

9. The power interface is located on the rear side of the tower body, and gas sources are distributed on both sides of the tower body, fully realizing electrical and gas separation to ensure safe equipment operation.

10. Surface treatment: electrostatic spraying.

11. Main body material: high-strength aluminum alloy profiles.

12. Ceiling-mounted installation, stable and firm.
