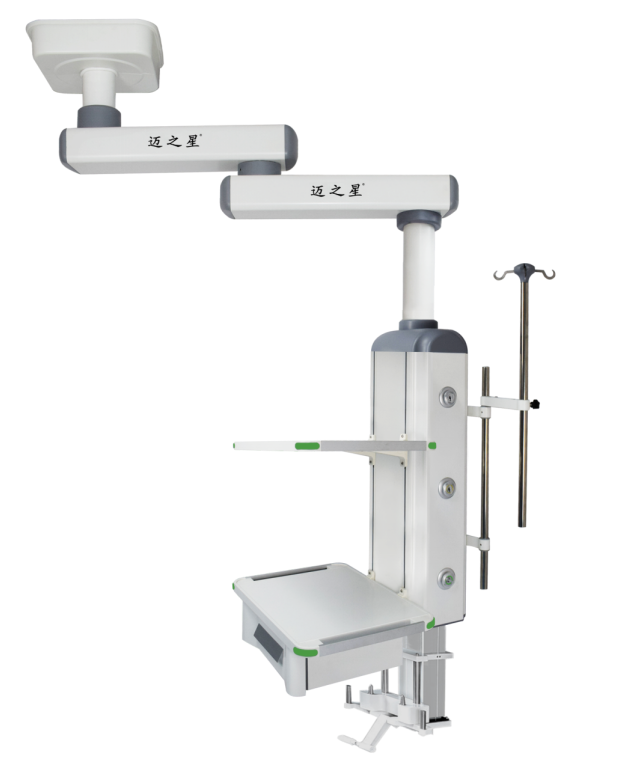

Electric Double-Arm Anesthesia Tower

Electric Double-Arm Anesthesia Tower

1. Working power supply: AC 220 V, 50 Hz.

2. Double-arm movement range (radius): 835 mm and 835 mm (configurable according to hospital requirements).

3. Horizontal rotation angle: 0–340°. The arms and the terminal box can rotate horizontally separately or simultaneously.

4. Net load capacity: ≥180 kg.

5. Instrument platforms: 2 layers (height adjustable), 660 mm × 450 mm, with silicone gel rounded-corner anti-collision design.

6. Gas interface configuration (national standard: 1 oxygen, 1 vacuum, 1 medical air, 1 nitrous oxide, 1 waste gas evacuation; configurable according to hospital requirements):

a. Different colors and shapes of connectors to prevent misconnection;

b. More than 20,000 insertion and withdrawal cycles;

c. Secondary sealing with three states (on, off, unplugged).

7. Power sockets: 10 pcs, 220 V, 10 A; network interface: 1 pc.

8. Grounding terminals: 2 pcs.

9. Stainless steel adjustable IV pole: 1 pc.

10. Drawer: 1 pc.

11. Anesthesia machine lifting bracket, electric lifting stroke 300 mm.

12. Power and gas source interfaces are located on both sides of the tower body, fully realizing electrical and gas separation to ensure safe equipment operation.

13. Main body material: high-strength aluminum alloy profiles.

14. Surface treatment: electrostatic spraying.

15. Ceiling-mounted installation, stable and firm.
