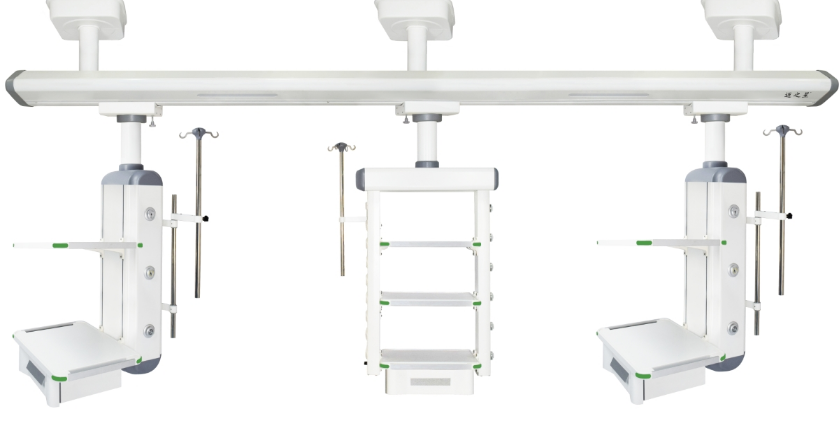

ICU Bridge Pendant

Core Features

1、工作电源： AC220V、50Hz；2、横梁长根据实际尺寸以用户现场实测为准，标配四个箱体，每相邻两床位共用一个箱体；照明灯每相邻两个塔段中间一个；3、可选配置刹车制动装置，设备无飘移，松开时设备能轻松移动；4、净载重量≥450kg5、吊架式干段塔： 2个，根据实际要求订制（左右移动距离300mm，可调）。每个干段塔配置如下： (1)仪器平台：...

1. Working power supply: AC 220 V, 50 Hz.

2. The beam length shall be based on the actual dimensions measured on site by the user. Four boxes are standard, with each adjacent two beds sharing one box; one lighting lamp is installed in the middle of each adjacent two tower sections.

3. Optional brake device: the equipment has no drift when braked, and can be moved easily when released.

4. Net load capacity: ≥450 kg.

5. Boom-type dry section pendants: 2 units, customized according to actual requirements (left-right movement distance 300 mm, adjustable).

Each dry section pendant is configured as follows:

(1) Instrument platforms: 2 layers (height adjustable), 660 mm × 450 mm, with silicone gel corner protectors and anti-collision design;

(2) Standard gas terminal configuration: (standard: 2 oxygen, 2 vacuum, 2 medical air), configurable according to hospital requirements;

a. Different colors and shapes of connectors to prevent misconnection;

b. More than 20,000 insertion and withdrawal cycles;

c. Secondary sealing with three states (on, off, unplugged), and can be serviced while gas is supplied;

(3) Multi-function power sockets: 10 pcs (configurable according to hospital), 220 V;

(4) Grounding terminals: 2 pcs;

(5) Network interface: 1 pc;

(6) Drawer: 1 pc;

(7) Stainless steel IV pole: 1 pc;

(8) Rotation: 0–340°.

6. Column-type wet section pendants: 2 units, customized according to actual requirements (left-right movement distance 300 mm, adjustable).

Each wet section pendant is configured as follows:

(1) Instrument platforms: 3 layers (height adjustable), 560 mm × 550 mm, with silicone gel corner protectors and anti-collision design;
