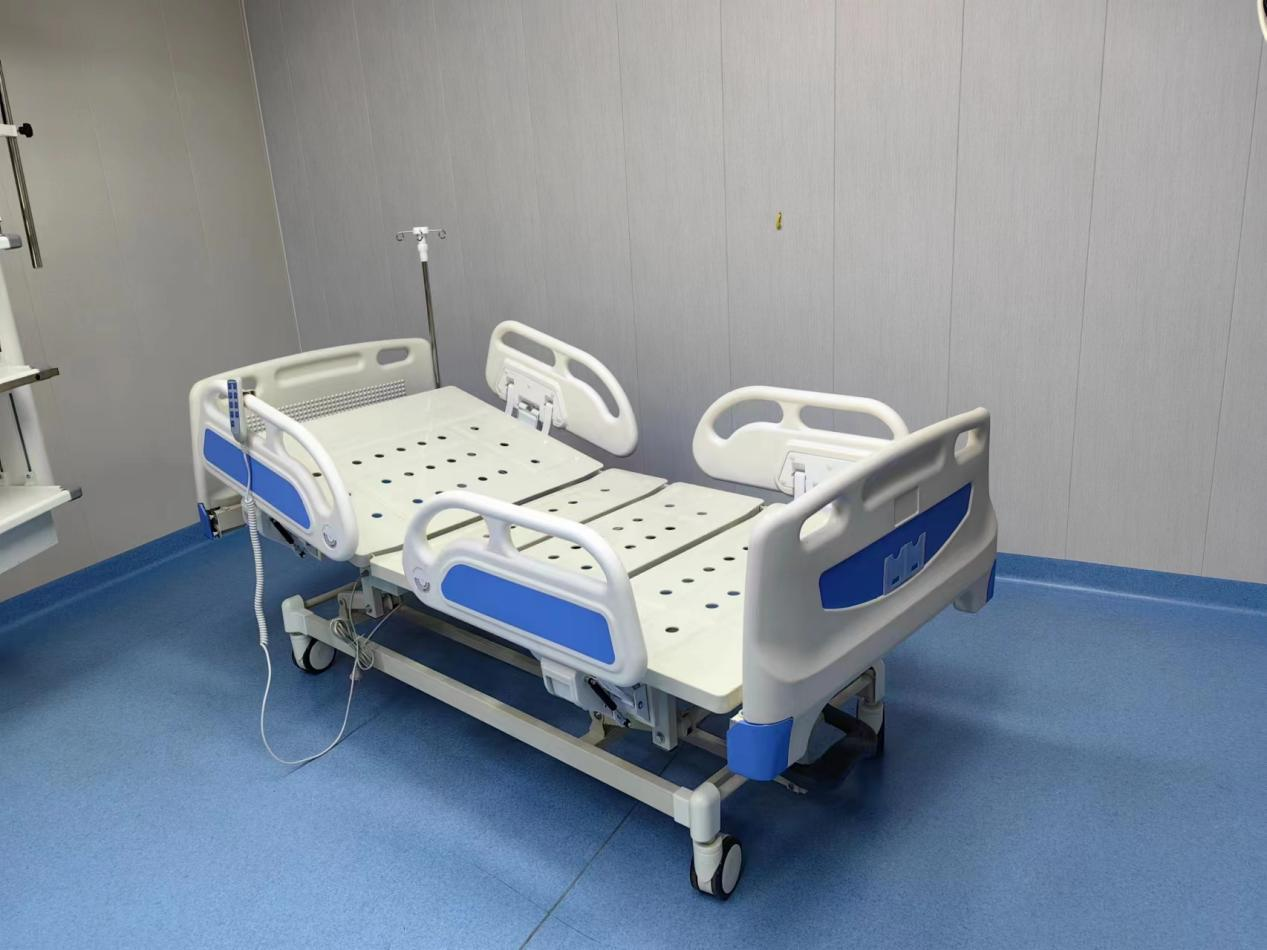

Product Functions:
Overall height adjustment: 450–730 mm; back section adjustment: 75°±5°; leg section adjustment: 45°±5°; forward/backward tilt: 12°±3°. ABS four-panel side rails, pneumatically raised and lowered; luxury quiet casters with independent brakes; the bed board is made by one-time stamping and robotic welding, featuring good anti-slip and breathability. The bed frame has a load capacity of no less than 280 kg.
Technical Parameters:
- The bed frame is welded from 60×30×1.5 mm formed square tubes, with a plate thickness of ≥1.2 mm and a tube thickness of ≥1.5 mm. Advanced welding technology ensures excellent welding quality, and the bed body is sturdy, capable of supporting ≥240 kg.
- Bed surface: 1.2 mm cold-rolled steel plates are press-bent and formed. The surface is stamped into a concave shape with a multi-hole design for ventilation and anti-slip function.
- The bed body is coated with AkzoNobel environmentally friendly antibacterial powder through electrostatic spraying, featuring anti-corrosion, anti-rust, and an elegant appearance.
- ABS four-panel side rails with rotary pneumatic lifting are convenient to operate, do not pinch hands, and are safe, sturdy, corrosion-resistant, and wear-resistant. All rail connectors are metal components, ensuring firmness and reliability; when lowered, the rails can be hidden on both sides of the bed surface and flush with the bed panel.
- Equipped with a dedicated medical motor with CE certification. The motor electrically controls position changes, with stable performance, smooth and reliable lifting, quiet operation, waterproof and dustproof design, power supply voltage of 220 V, frequency of 50 Hz, and noise of less than 45 dB.
- Equipped with φ125 brake casters and a high-stability linked braking system for stable and convenient braking. The casters are waterproof and dustproof, and a quiet single-wheel design increases ground contact area and stability.
- The four corners are equipped with IV pole sockets and drainage hooks, and an IV pole is included.
- The mattress is made of 8 cm palm fiber with cotton, with a built-in medical waterproof fabric and an environmentally friendly patented design that is waterproof and easy to clean.
